Application & Features:

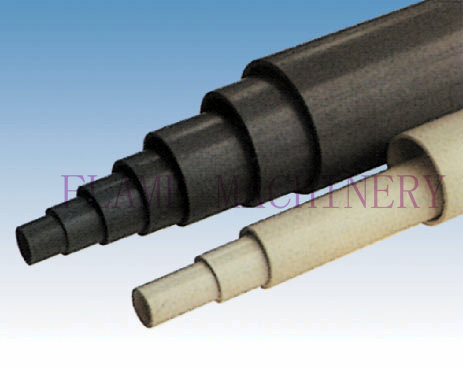

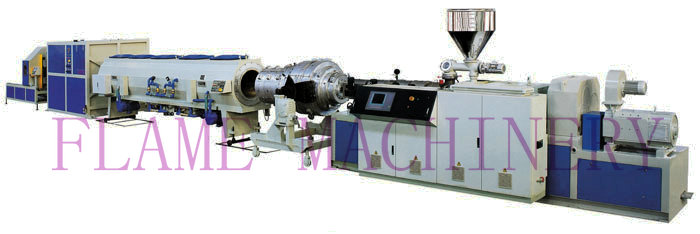

PVC Pipe Production Line is widely used in producing U-PVC, C-PVC, heavy caliber PVC water supply pipe and drainpipe. This unit consists of conical double screw extruder, vacuum sizing frame, hauling-off machine, cutting machine and collect bench,etc.
Main Technical Parameter:
Model | GF-50 | GF-110 | GF-160 | GF-250 | GF-400 | GF-630 |
Extruder | SJSZ-51 | SJSZ-65 | SJSZ-65 | SJSZ-65 | SJSZ-80 | SJSZ-92 |
Pipe diameter range(mm) | Ф16-Ф40 | Ф50-Ф110 | Ф63-Ф160 | Ф110-Ф250 | Ф200-Ф400 | Ф315-Ф630 |
Length of calibrator(m/min) | 3-12 | 2--8 | 2--8 | 0.4--3 | 0.4--3 | 0.4--3 |
Power (kw) | 62 | 66 | 89 | 95 | 135 | 255 |
Total length(mm) | 17000 | 18000 | 20000 | 20500 | 28000 | 30000 |
