Application & Features

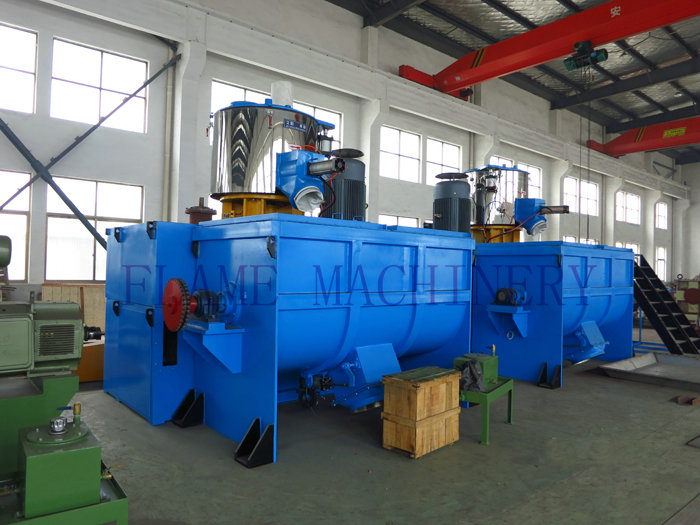

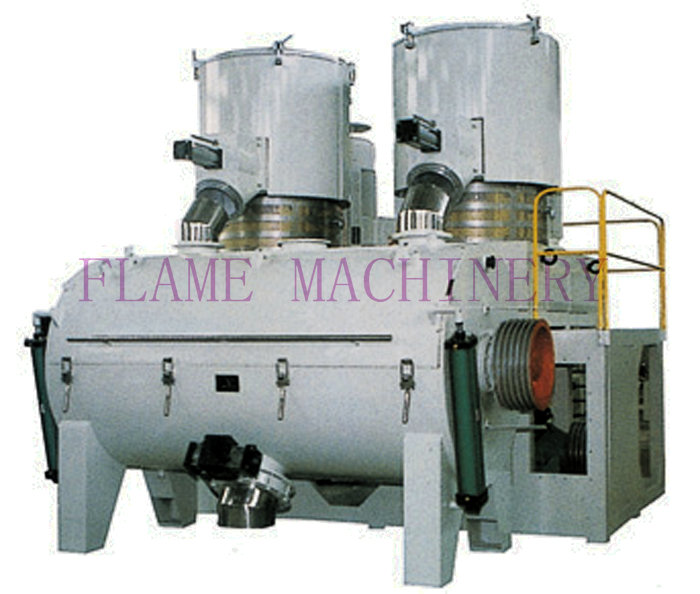

SRL-ZW series mixing unit will heat the mixture cool mixing together, so that the material thoroughly mixed in hot mix in, and then rapidly cooled by cold mix, to avoid lumps in order to enter the next process, this device is also equipped with exhaust device
Main technical parameters
Type | SRL-Z200/800W | SRL-Z300/1000W | SRL-Z500/1600W | SRL-Z800/2500W | SRL-Z1000/3500W | SRL-Z800ｘ2/4000W |
The total volume（L） | 200/800 | 300/1000 | 500/1600 | 800/2500 | 1000/3500 | 1600/4000 |
Effective volume（L） | 150/500 | 225/660 | 375/1024 | 560/1600 | 650/2200 | 1040/2700 |
Motor Power（KW） | 30/42/11 | 40/55/15 | 55/75/18.5 | 83/110/22 | 110/150/30 | (83/110/37)ｘ2 |
Weight（KG） | 3500 | 7800 | 8500 | 11000 | 1200 | 15000 |
