Application & Features

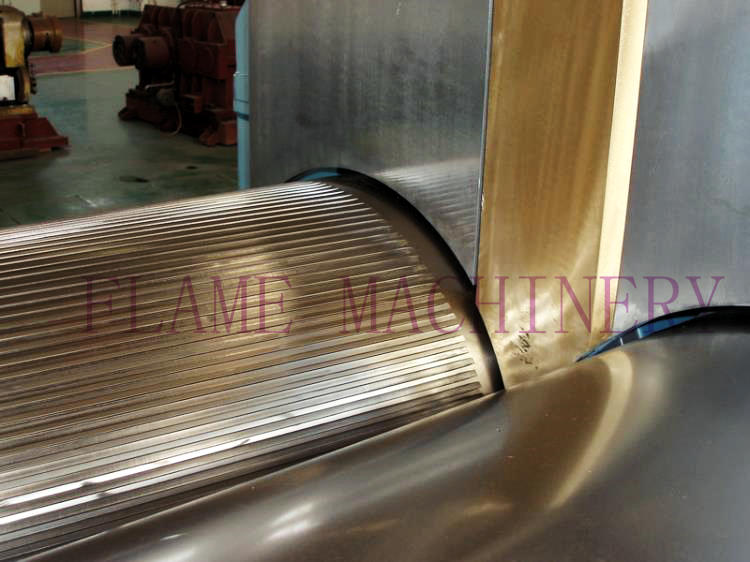

Roller is made of chilled alloy cast iron, The surface is high glossy, hard and wearable. Water is used in the jacket for cooling in order to meet the requirements. Durative lubrication is adopted with visual glass display. Overload protection device is equipped to protect the major components. Emergency brake switch can be used to stop the machine when accident happens. Also equipped with high grade gear reducer, the noise is lower than others when it is running.
Main technical parameters
Type | XK350ｘ900 | XK400ｘ1000 | XK450ｘ1200 | XK560ｘ1680 | XK610ｘ1830 | XK660ｘ2030 | XK710ｘ2300 | XK760ｘ2500 |
The diameter of the front and rear rollers（mm） | Ø350 | Ø400 | Ø450 | Ø560 | Ø610 | Ø660 | Ø710 | Ø760 |
Roller working length（mm） | 900 | 1000 | 1200 | 1830 | 2030 | 2300 | 2500 | 2800 |
Main motor power（KW） | 30 | 45 | 75 | 110 | 160 | 185/250 | 250/300 | 300 |
Weight（KG） | ≈6000 | ≈8000 | ≈12500 | ≈18500 | ≈26500 | ≈32000 | ≈38000 | ≈42000 |
Less speed machine | Hardened gear box | |||||||
Transmission | Universal joint drive | |||||||
