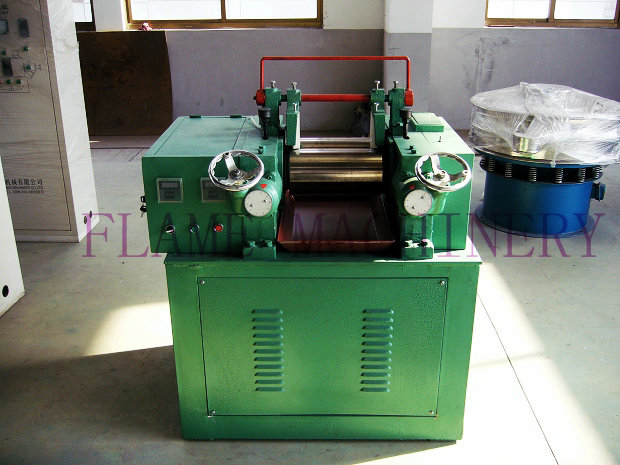

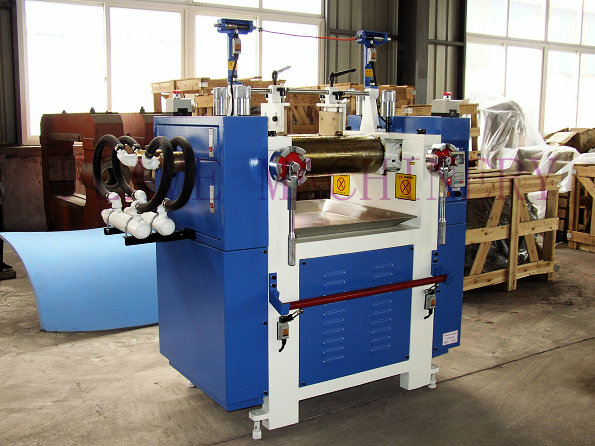

Application & Features
The machine adopts the copper-tile bracket and gets the features as small volume, low noise, full-direction safety design, energy saving and high efficiency.
Main technical parameters
Type | XS160×320 | XS230×620 | XS250×620 | XS300×700 |
Simply roll diameter(mm) | 160mm | 230 | 250 | 300 |
Roll surface width(mm) | 320 | 620 | 620 | 700 |
Before the roll speed(m／min) | 9.8 | 12.33 | 14.26 | 14．8 |
Roll ratio | 1：1.22 | 1：1.19 | 1：1.2 | 1：1.23 |
Nip(mm) | 4 | 7 | 8 | 10 |
Once feeding(KG) | 1～2 | 10～15 | 10—20 | 15～20 |
Power | 5.5 | 15 | 18.5 | 22 |
Dimensions(mm) | 1000×760×1300 | 2952×1140×1425 | 2230×1265×1620 | 3250×1420×1580 |
Total Weight(KG) | ≈1000 | ≈2500 | ≈4000 | ≈4500 |
