Application & Features

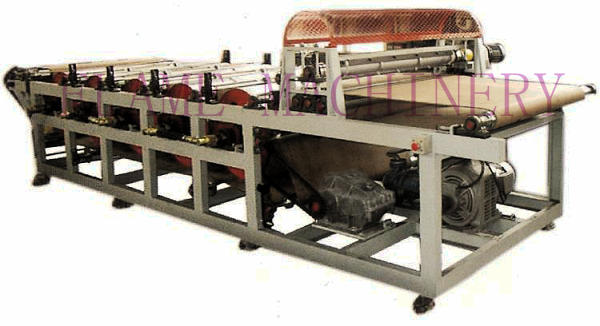

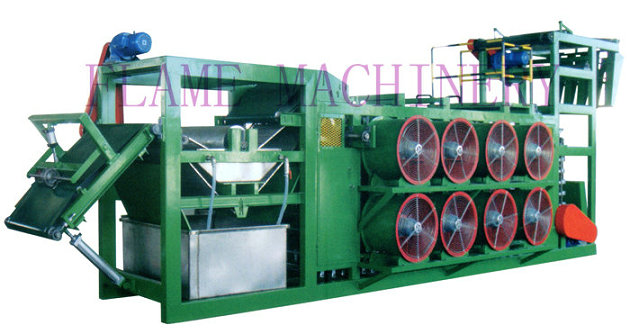

This machine is mainly used for dipping, cooling and folding the rubber sheet from the sheet mill after the mixer. The item consists of dipping device, lifting and transporting device, cooling device, cutting device, folding device and control system. Its function includes marking code, besmearing separant, lifting, hanging and cooling, wig-wag, etc.
Main technical parameters
Type | XPG-600 | XPG-800 | XPG900 |
The maximum width of the film（mm） | 600 | 800 | 900 |
Film thickness（mm） | 4-10 | 4-10 | 6-12 |
Acess line speed（m/min） | 3-24 | 3-35 | 4-40 |
Film hanging height（mm） | 1000-1500 | 1000-1500 | 1400 |
Cooling fan number (a) | 12 | 20-32 | 32-34 |
Total power（KW） | 16 | 25-34 | 34-50 |
Dimensions（mm） | 14250ｘ3300ｘ3405 | 16800ｘ3400ｘ3520 | 26630ｘ3500ｘ5630 |
Weight(KG) | ≈11000 | ≈22000 | ≈34000 |
