Application & Features

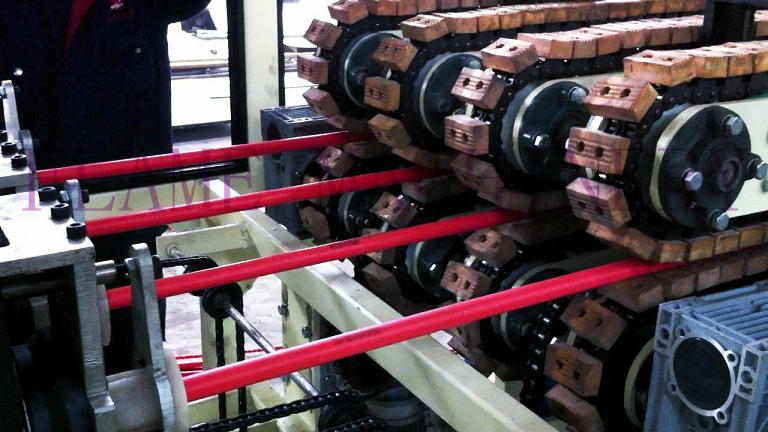

Mainly used in the production of PVC-U electrician threading pipe, can produce four line pipe, greatly improving production efficiency. Each tube independent traction, cutting, effectively reducing the production of pipe scrap.
Main technical parameters
Type | FGF--50 |
Traction(N) | 4000 |
Traction speed(m/min) | 0.5---15 |
Drive power motor(kw) | 0.75ｘ8 |
Cutting motor power(kw) | 1.1ｘ4 |
Cutting motor speed（r/min） | 3500 |
Production tubing specifications(mm) | Ф16-Ф50 |
Line speed(m/min) | 0.5--15 |
Equipment installed power(kw) | 122 |
Equipment production line length(m) | 约22 |
